Compact C-3-8 Ceiling VAD
Compact C-3-8 Ceiling VAD
Provides C-3-8 coverage when ceiling mounted. Alternatively can be wall mounted to provide W-3-3.1 coverage. Compatible with C-TEC’s XFP/ZFP XP95/Discovery Addressable Fire Panels.
Features
- Third-party certified to EN54-23 (VADs) and 17 (Isolators) by Intertek.

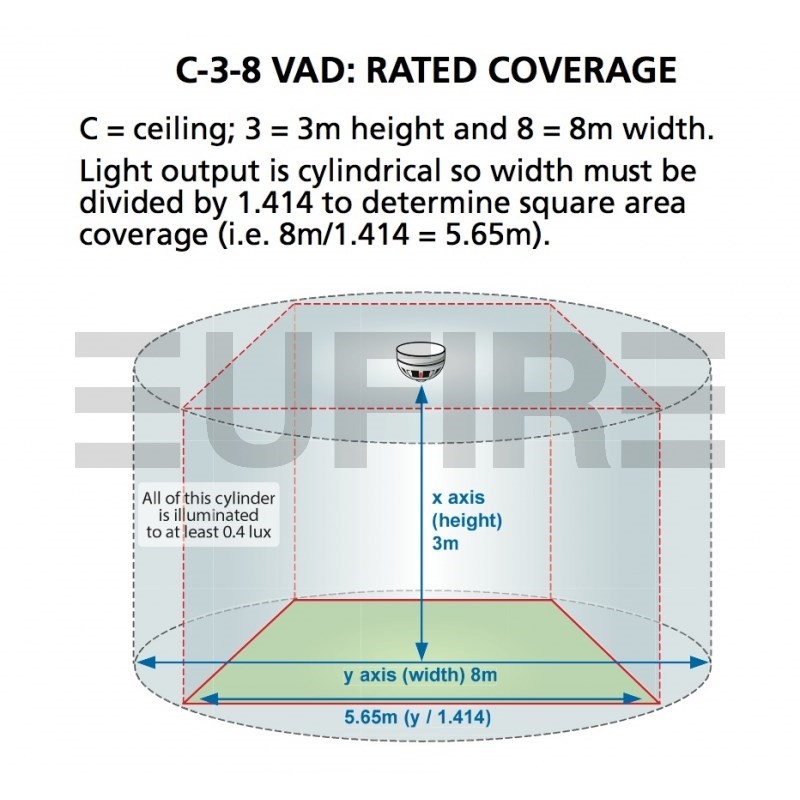

- Provides ‘C-3-8’ light distribution when ceiling mounted (min 0.4 lux over a 3 x 8m cylindrical area).

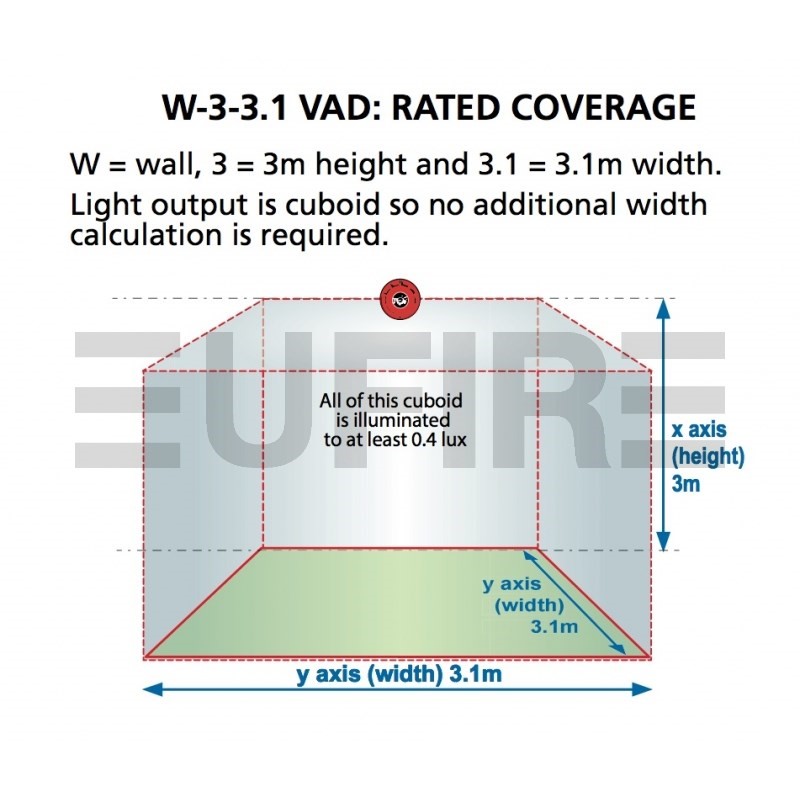

- Can also provide ‘W-3-3.1’ light distribution when wall mounted (min. 0.4 lux over a 2.4 x 3.5m cuboid area).
- Onboard short-circuit loop isolator.
- 550µA quiescent current.
- 10mA alarm current @24V DC.
- Group addressing facility allows multiple devices to be operated simultaneously.
- IP21C rated.
