Features

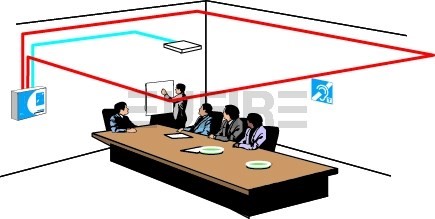

• Wall-mountable PDA200E amplifier capable of driving a perimeter loop of up to 200m2.
• Internal drive, level and metal compensation controls.
• Two balanced / unbalanced line level inputs.
• One microphone input with 12V phantom power for electret microphones.
• Full compatibility with the Outreach plate audio input extension system.
• Fully compliant with BS EN 60118-4 when correctly installed.
• APM microphone provides up to 25m2 ambient coverage or 2.5m2 direct speech coverage from a ceiling height of 2.5 to 3m.
• Loop cable not included – use our LOOP2W 1mm2 cable or download our AFILS loop calculator from our Software & Apps page for more precise recommendations.

Downloads

• • C-Tec Guide to Hearing Loop Systems (PDF)
  • PDA200E/AK Range Manual (PDF)
