Detector Base, White

Image 1

Detector Base, White

  • AD-9007
  • Morley IAS
  • B501AP

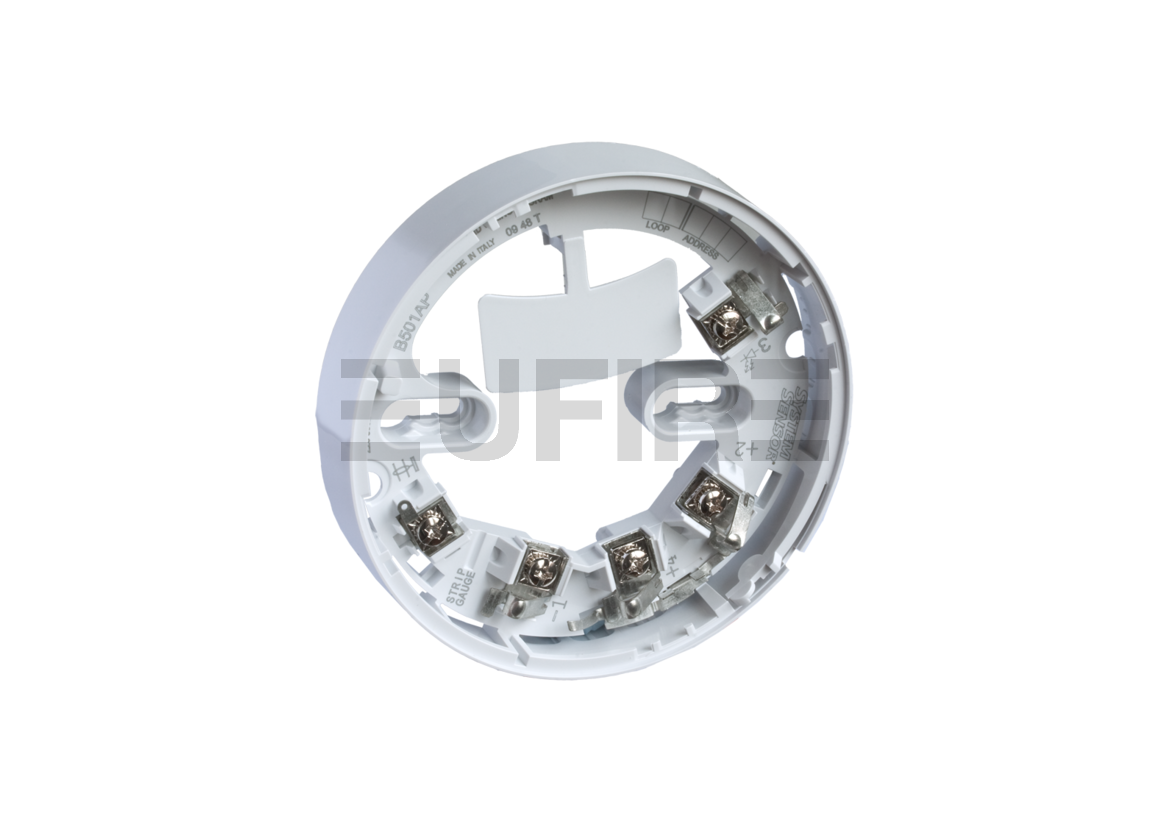

The B501AP Base is designed to accept S200 detectors and has a tamper resistant feature which can be enabled by breaking off a plastic tab. When enabled the detector cannot be removed without a suitable tool.

EMAIL ENQUIRY 01706 658 880

Features

  • Width: 102mm
  • Weight: 39 g
  • Height: 22.5 mm
  • Mounting to mounting boxes with a hole spacing of 60mm. Screw size max diameter 4 mm (head diameter 8 mm).
  • -30°C to +60°C operating temperature range
  • 10% to 93% Relative Operating Humidity
  • Compatible with all S200 addressable sensors
