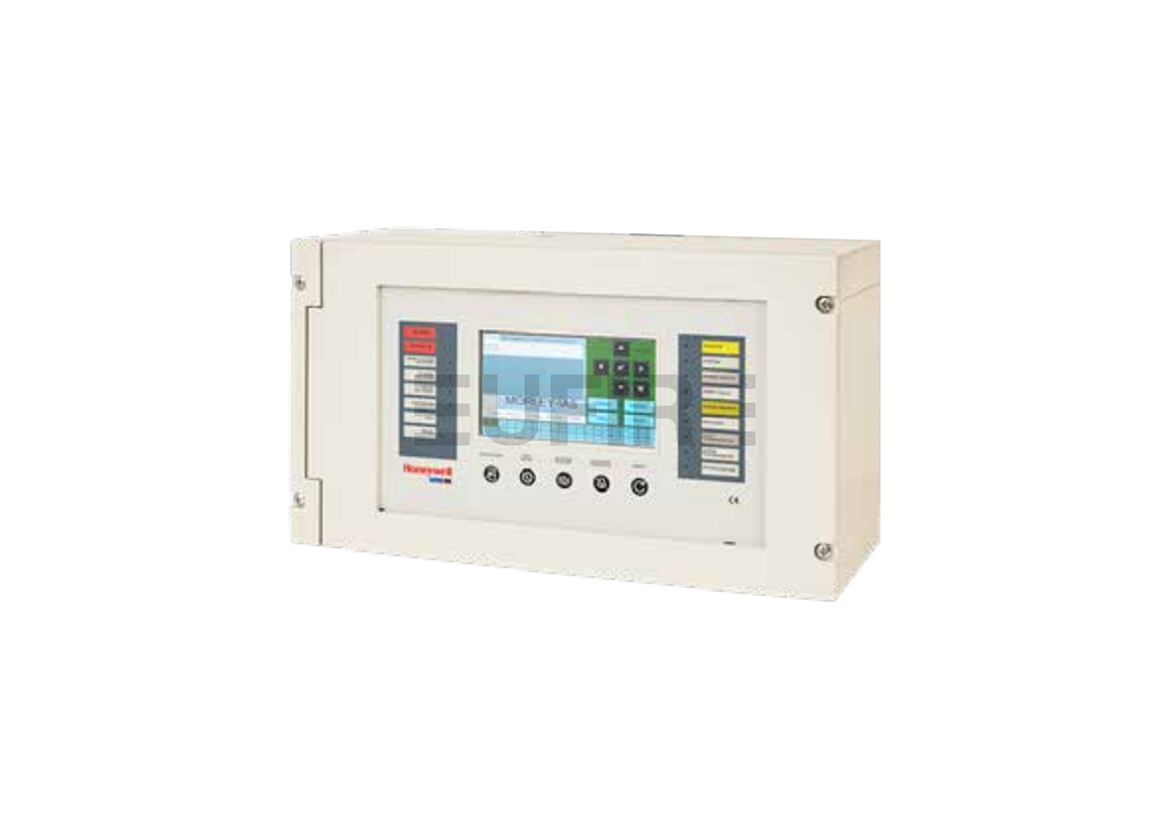

Max 2 Loop Panel - System Sensor Protocol

  • AP-9102
  • Morley
  • MA-2000-01

The system offers fire detection solutions integrated for many applications, like hotels, offices, hospitals, industrial environments, and production facilities.

EMAIL ENQUIRY 01706 658 880

Features

  • 4 access levels in accordance with EN 54 standards.
  • Programmable text (32 characters) for points and zones.
  • Up to 2000 soft zones, 400 logical groups in stand-alone systems and 1600 groups in network configuration with 64 panels or 128 total loops.
  • Control-by-event (CBE) equations for activations with logical operators (AND, OR, DEL, etc).
  • Historical log stores 10,000 events, plus 4,000 active events in non-volatile memory (standalone or network configuration).
  • Clock in real time.
  • Auto-programming lines with automatic recognition of the model of the devices.
  • Decision algorithms for the alarm, pre-alarm and faults.
  • Automatic day / night sensitivity change.
  • Indication of the need to clean the smoke sensors.
  • Programmable alarm threshold for all sensors.
  • Walk-Test function by zone.
