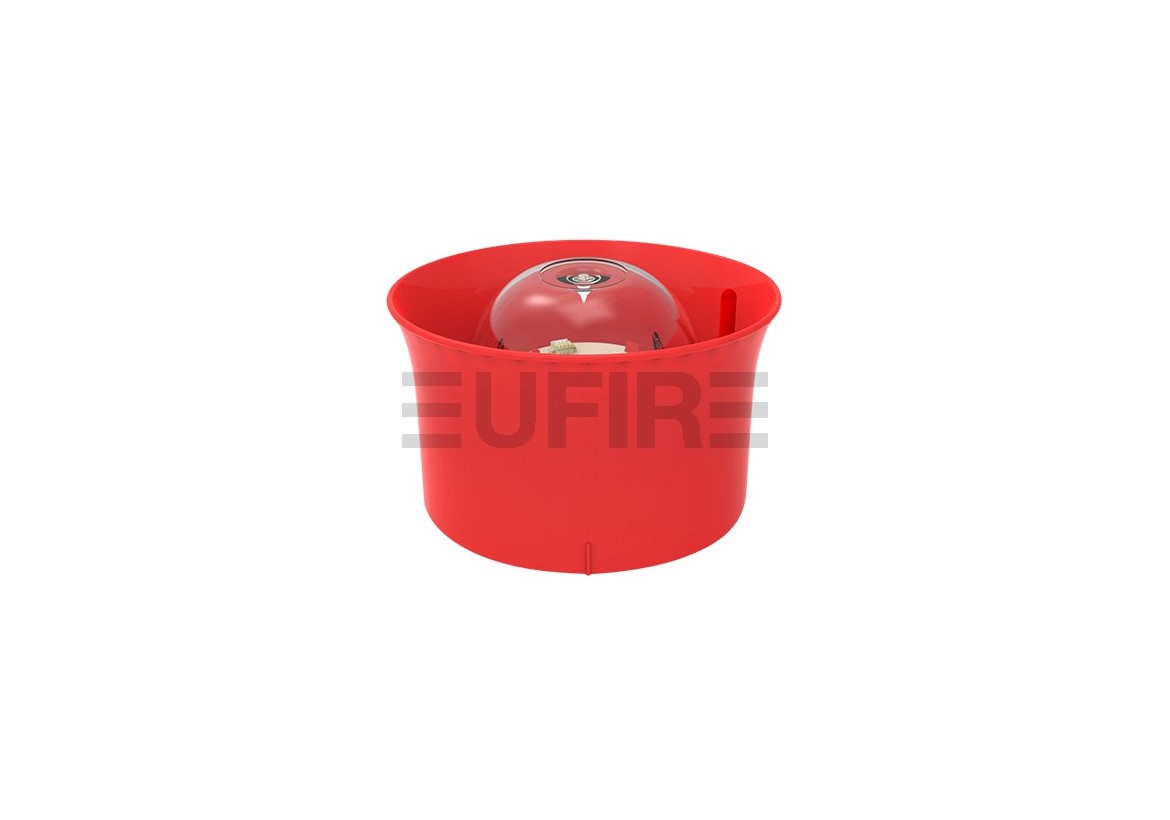

Wall Sounder Beacon, Red/Red Flash

Image 1

Wall Sounder Beacon, Red/Red Flash

  • AD-1044
  • Hochiki
  • CHQ-WSB2/RL

Model CHQ-WSB2/RL is an EN54-23 compliant addressable loop powered Wall Sounder Beacon innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption.

EMAIL ENQUIRY 01706 658 880

Features

  • Single Loop Address - addressed via the TCH-B200 Hand Held Programmer
  • Variable Sound Output 90 ~ 102 dB(A) (+/-2 dB(A)) output at 1 metre
  • High Intensity LED technology
  • 0.5 or 1Hz flash frequency
  • Fits Hochiki Standard or Isolator Base
  • Weatherproof Kit available
  • 51 User-Selectable Tones (all tones EN54-3 compatible)
  • Approved by LPCB to EN54-23: 2010 - Category 'O' (Certificate No 164t/02)
