Mains Relay Controller c/w Isolator

  • ADI-1021
  • Hochiki
  • CHQ-MRC2 (SCI)

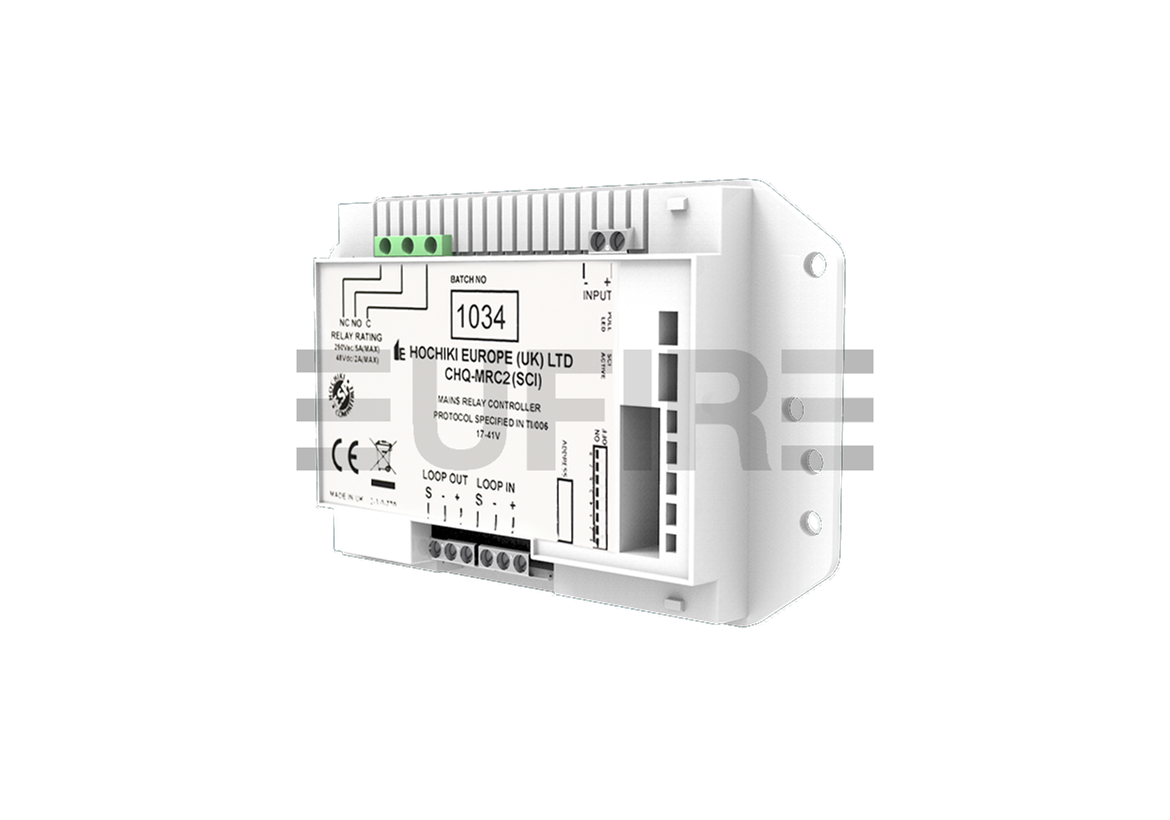

Model CHQ-MRC2(SCI) is a mains relay controller providing a single mains rated relay output for the control of such devices as dampers, extractors or plant and equipment shutdown. **Does not fit on CHQ-BACKBOX**

EMAIL ENQUIRY 01706 658 880

The monitored input can be used for local power supply fault monitoring or as a general-purpose input. Also available as a DIN Rail mountable version; both models feature an integral short-circuit isolator. Requires mounting within a 5 Kg enclosure - not supplied.

Features

  • Loop-powered
  • Single loop address
  • Single mains rated relay contact
  • Relay contact rated at 250 Vac @ 5 A (resistive load only) and 48Vdc @ 2 A (resistive load only)
  • Auxiliary monitored input
  • DIN rail version available
  • Both models feature an integral short-circuit isolator
  • Bot models approved by LPCB
