CIE-A-200 Single Loop Addressable Panel

Image 1

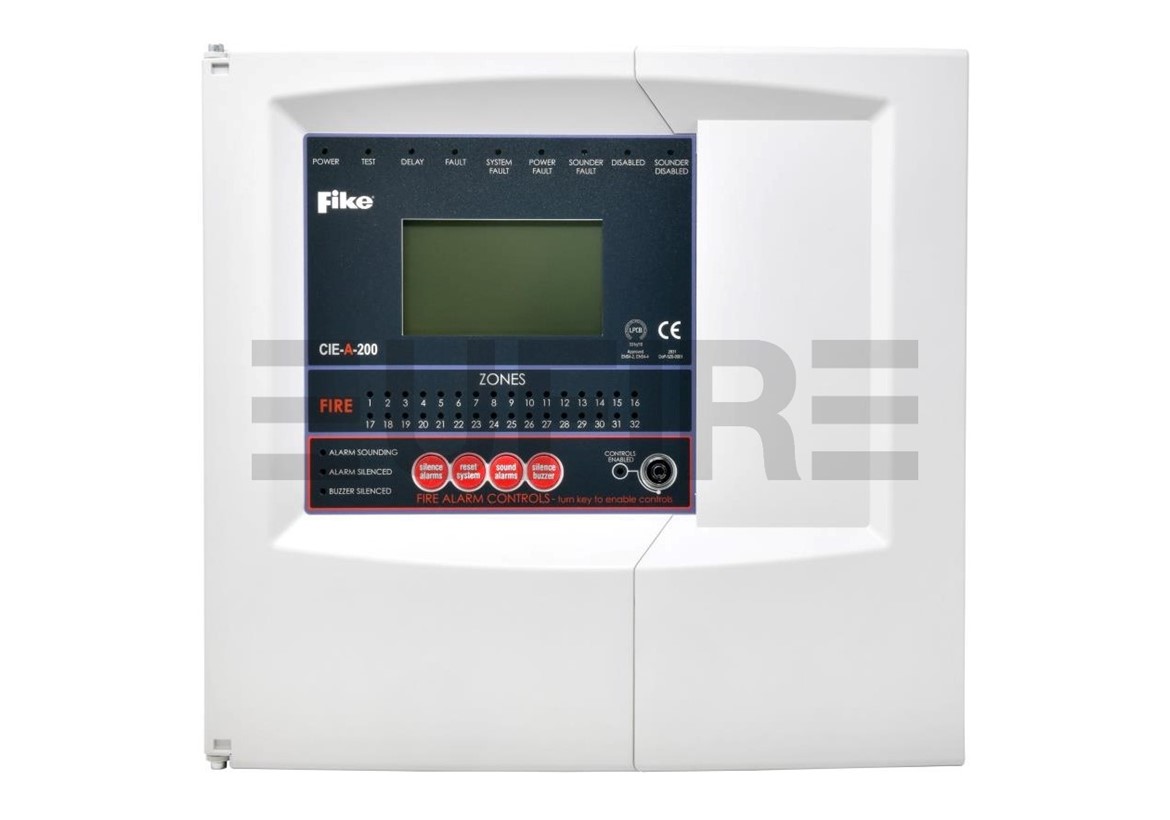

CIE-A-200 Single Loop Addressable Panel

  • AD-8020
  • Fike
  • 520-0001

A single loop addressable panel capable of supporting up to 200* devices with a maximum loop length of 2km.

EMAIL ENQUIRY 01706 658 880

Specifications

Dimensions Panel (WxHxD): 353mm x 333mm x 117mm
Operating Temperature: +5°C to +40°C
IP Rating: IP30
Mains Supply Input: 230V AC Nominal
Standby Battery Requirement: 2 x 7Ah 12V Sealed Lead Acid (2 x 12 Ah with extended battery box)
Max Number of Loops: 1
Max Loop Length: 2000 Metres
Max Conductor Resistance: 24 Ohms
Loop Loading: 450 DLU (200 Devices Max)*
Loop Operating Voltage: 40V DC
Standby: 24V DC
Max Loop Current: 500mA
Number of Supported Zones: 32
LCD Display: LCD Graphical Display
Device Labels: 31 Characters
Event Log: 1000 Events
Repeater Panels: 8 Max
Aux Power Output: 30V DC 450mA
Inputs and Outputs: Inputs: 2 x Monitored Inputs (3k3 EOL, 680R Firing Resistor)
Outputs: 3 x Volt Free Relay (30V DC @ 1A Max)
Monitored Outputs 2 x (24V DC @ 500mA Max, 10k EOL).
Each monitored output may be configured as a Conventional Sounder Circuit or a Remote Fire Circuit or as a Common Fault output.



*Please check the CIE-A-200 device loading unit (DLU) calculation sheets for accurate loop loading calculations.
