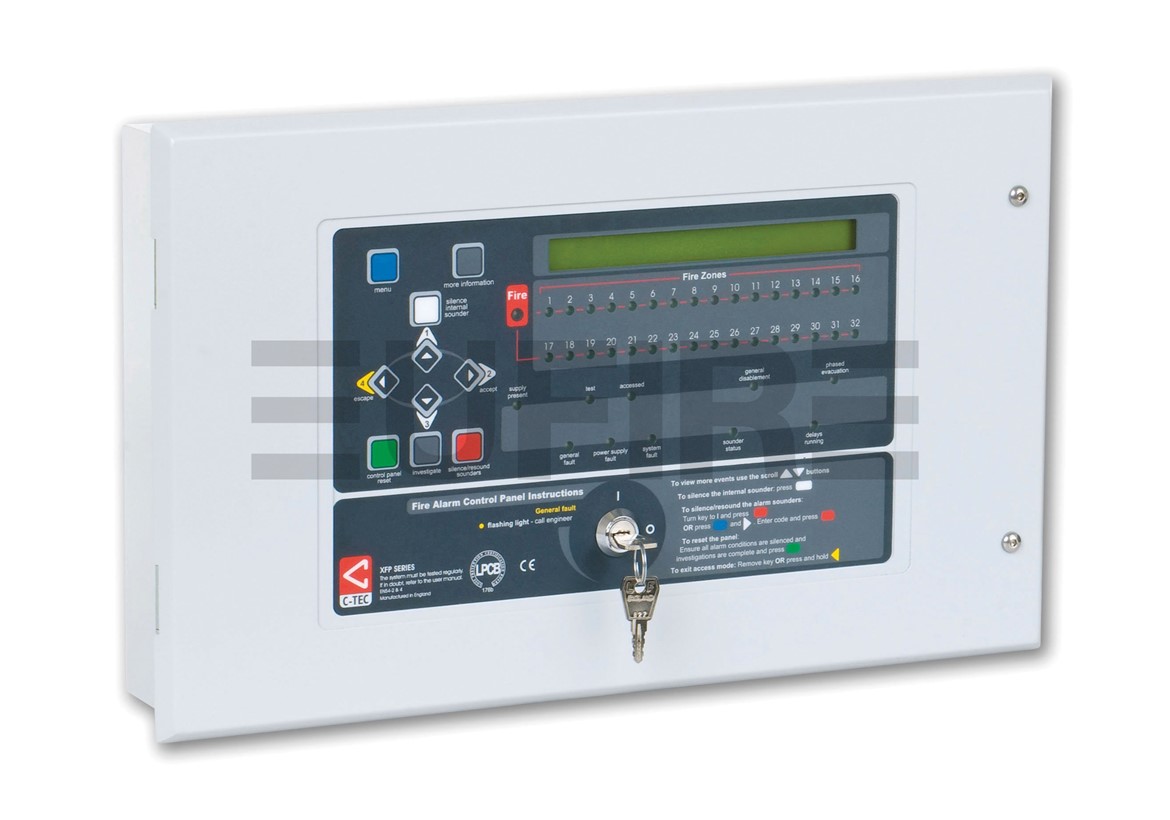

XFP Networkable Repeater 32z (all Protocols) Code / Keyswitch Entry

Image 1

XFP Networkable Repeater 32z (all Protocols) Code / Keyswitch Entry

  • AP-4032
  • C-Tec
  • XFP510-32

Can be used to repeat the functions of an XFP Main panel at remote parts of a site (e.g. all potential fire service entrances).

EMAIL ENQUIRY 01706 658 880

Features

  • Offers all of the functions and controls of an XFP Main panel (access levels 1, 2 and 3).
  • Includes an on-board fault relay.
  • Requires its own dedicated Mains power and battery back-up supply.
  • A maximum of eight XFP Repeaters can be connected to one non-networked XFP Main panel.
  • Communication between the XFP Main panel and Repeater requires an AFP711 network driver card (fitted as standard in all XFP510-32s, available as an optional extra on Main XFP 32 Zone panels).
  • Repeater network wired in 1.5 mm2 two-core screened fire resistant cable. Network length must not exceed 500 metres.

Downloads



Protocol/compatibility Compatible with C-TEC's XFP CAST, Apollo XP95/Discovery and Hochiki ESP main panels.
Mains supply 230V 50/60Hz.
Mains rated current 680mA maximum.
Internal power supply 27Vdc nominal.
Total output current limited to 3A @ 230Vac (Imax.A 250mA; Imin. 70mA).
Quiescent current TBC.
Max battery size and type 2 x 12V 7Ah VRLA connected in series.
Auxiliary relays Fault (Failsafe; Capable of switching 1A @ 30V DC; Must not be used for switching Mains voltages).
PC connection None.
Indicators 2 line x 40 character backlit display; 32 Zonal LEDs, General Fire; Energised; Pre-Alarm; Remote Output Activated; Remote Output Disabled; Accessed; Disablement; Test; Silenced; General Fault; System Fault.
Expansion connections On board AFP711 network driver card facilitates the connection of additional XFP Repeaters.
Product dimensions (mm) 410 W x 250 H x 80 D mm (base); 439 W x 274 H x 7 D mm (lid).
Construction & finish Metal.
IP Rating TBC.
Weight 4.5kg (no batteries).
Operating conditions/temperature -5ºC to +40ºC. Max relative humidity: 95%.
Network specification Max. no. of Repeaters per Main XFP: 8 (any mix); Max. total length of Repeater network: 500m; Cabling requirements: 1.5mm2 two core screened fire resistant.
