XFP Networkable Repeater 16z (all Protocols) Code / Keyswitch Entry

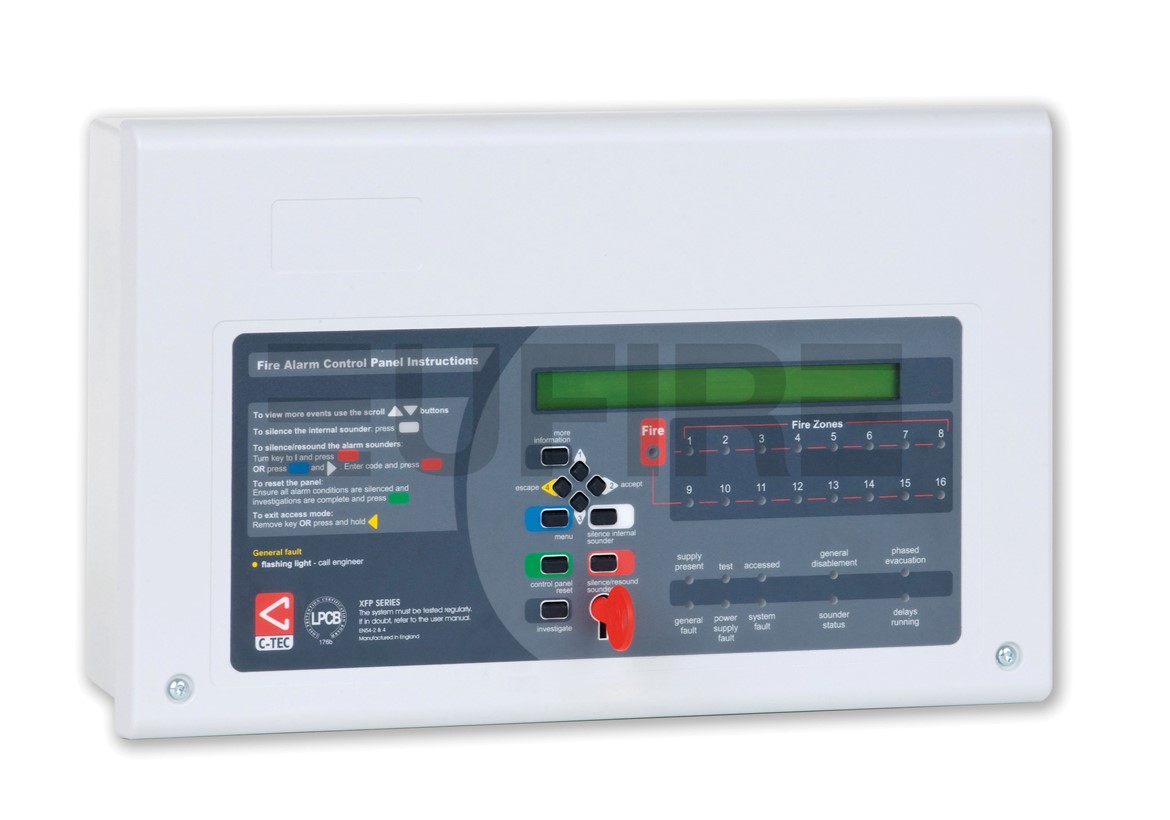

Image 1

XFP Networkable Repeater 16z (all Protocols) Code / Keyswitch Entry

  • AP-4031
  • C-Tec
  • XFP510-16

Can be used to repeat the functions of an XFP Main panel at remote parts of a site (e.g. all potential fire service entrances).

EMAIL ENQUIRY 01706 658 880

Features

  • Offers all of the functions and controls of an XFP Main panel (access levels 1, 2 and 3).
  • Includes an on-board fault relay.
  • Requires its own dedicated Mains power and battery back-up supply.
  • A maximum of eight XFP Repeaters can be connected to one non-networked XFP Main panel.
  • Communication between the XFP Main panel and Repeater requires a CFP761 network driver card (fitted as standard in all XFP510-16s, available as an optional extra on Main XFP 16 Zone panels).
  • Repeater network wired in 1.5 mm2 two-core screened fire resistant cable. Network length must not exceed 500 metres.

Downloads



Protocol/compatibility Compatible with C-TEC's XFP CAST, Apollo XP95/Discovery and Hochiki ESP main panels.
Mains supply 230V 50/60Hz.
Mains rated current 350mA maximum.
Internal power supply 27Vdc nominal.
Total output current limited to 1.4A @ 230Vac (Imax.A 210mA; Imin. 40mA).
Quiescent current TBC.
Max battery size and type 2 x 12V 3.2Ah VRLA connected in series.
Auxiliary relays Fault (Failsafe; Capable of switching 1A @ 30V DC; Must not be used for switching Mains voltages).
PC connection None.
Indicators 2 line x 40 character backlit display; 16 Zonal LEDs, General Fire; Energised; Pre-Alarm; Remote Output Activated; Remote Output Disabled; Accessed; Disablement; Test; Silenced; General Fault; System Fault.
Expansion connections On board CFP761 network driver card facilitates the connection of additional XFP Repeaters.
Product dimensions (mm) 380 W x 235 H x D 96mm;
Construction & finish Plastic lid and base; RAL7035 textured.
IP Rating IP30.
Weight 1.8kg (without batteries).
Operating conditions/temperature -5ºC to +40ºC. Max relative humidity: 95%.
Network specification Max. no. of Repeaters per Main XFP: 8 (any mix); Max. total length of Repeater network: 500m; Cabling requirements: 1.5mm2 two core screened fire resistant.
