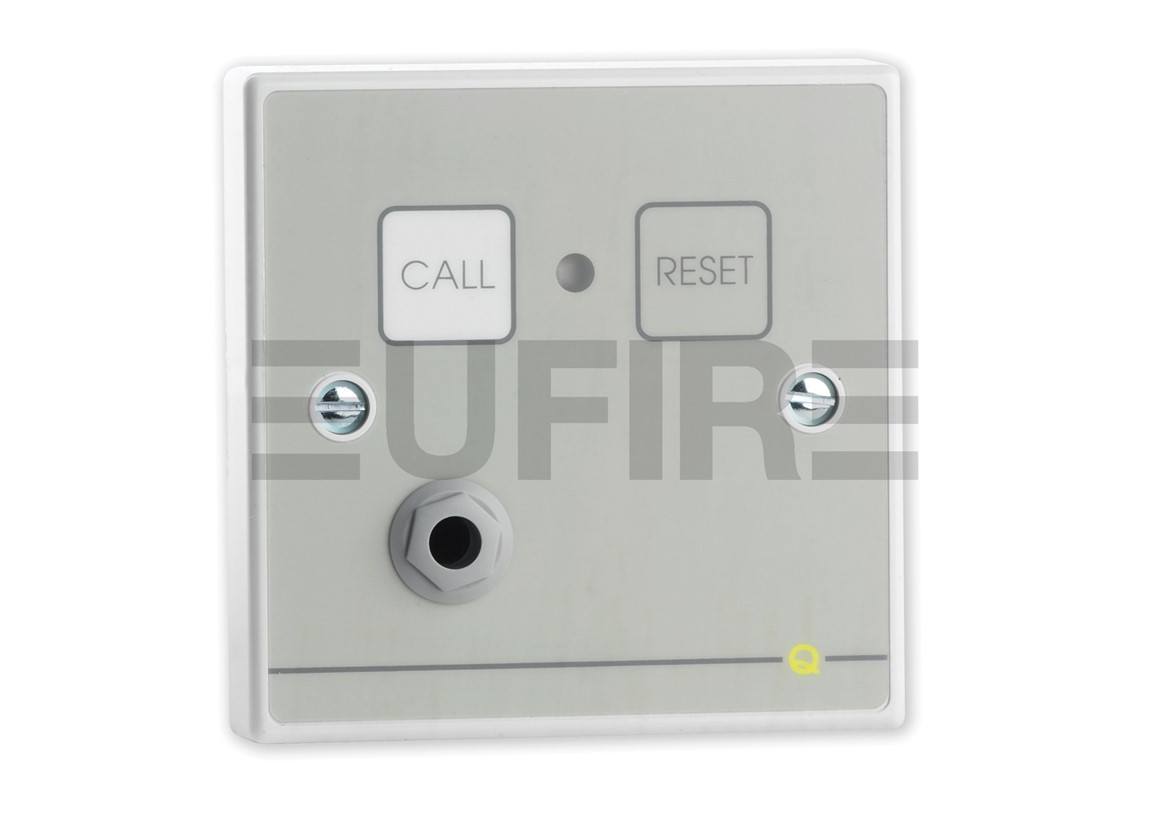

Quantec Callpoint c/w sounder & IR Receiver, button reset

Image 1

Quantec Callpoint c/w sounder & IR Receiver, button reset

  • NC-2017
  • C-Tec
  • QT602RS

Quantec Addressable Infrared Call Point, Button Reset c/w Sounder & Remote Socket

EMAIL ENQUIRY 01706 658 880

Features

  • A programmable Quantec addressable call point c/w infrared receiver, call follower sounder and remote jack socket.
  • Includes a Call button, Reset button and red/green confidence light.
  • Onboard infrared receiver accepts calls from compatible Quantec infrared transmitters.
  • Can make up to 7 levels of call - Standard, Ensuite, Help Required, Emergency, Attack, Presence & Attendance (dependent on configuration and ancillary devices used).
  • Remote socket allows the connection of optional tail call leads, pressure mats, etc.
  • Can be programmed to operate in a multitude of ways using a QT423 configurator.
  • Connections provided for additional slave devices such as ceiling pulls, overdoor lights, slave infrared receivers and more.
  • Call follower sounder can be optionally used to inform staff that other calls are waiting when the system is in Night mode (see Technical Specifications for further details).
  • QT602RSM magnetic reset version also available.
