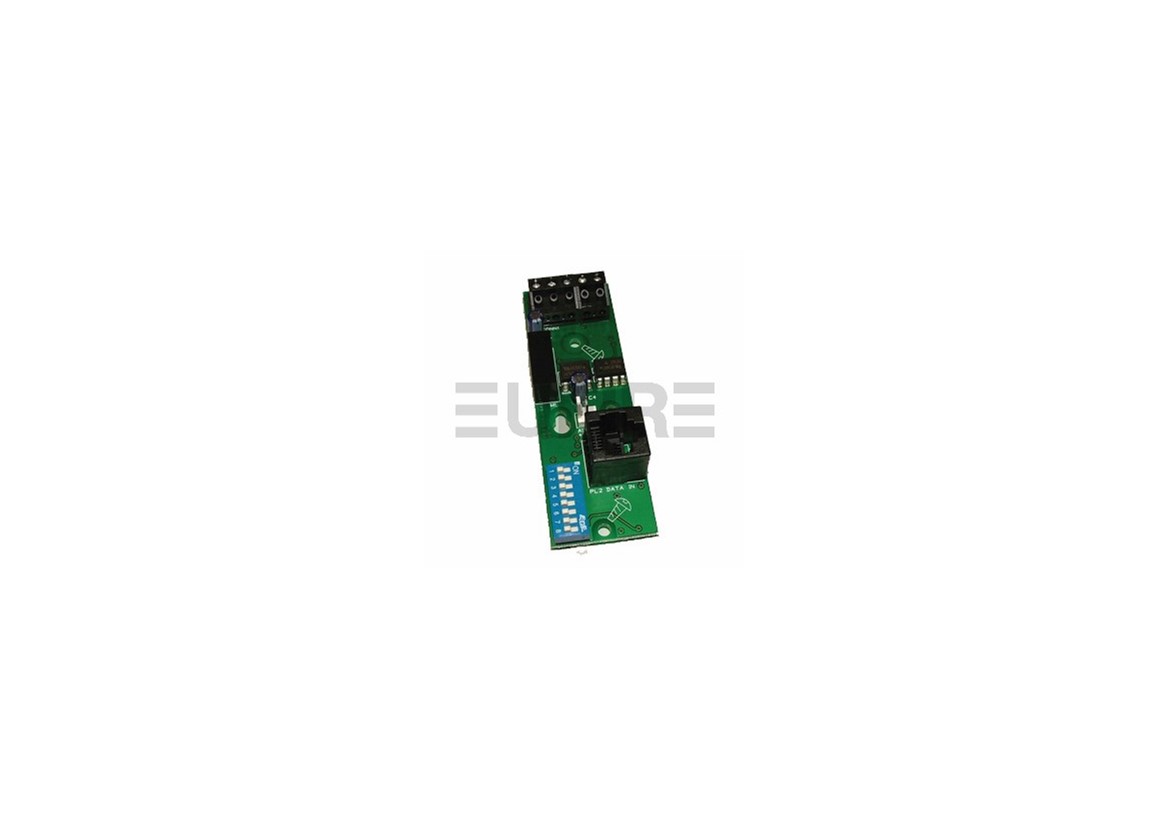

Network Card for 16z Panel (1 required per master for network or repeater function)

Image 1

Network Card for 16z Panel (1 required per master for network or repeater function)

  • P-3014
  • C-Tec
  • CFP761

An optional system expansion device for use with CFP Standard and CFP AlarmSense conventional fire panels.

EMAIL ENQUIRY 01706 658 880
  • Allows the connection of up to eight CFP760 Repeaters (one CFP761 required per Main, all CFP760 repeaters include a CFP761 as standard).
  • Communicates over screened two-wire fire resistant cable.
  • Total repeater network cable length should not exceed 1KM.



Compatibility CFP Standard Conventional and CFP AlarmSense 2-8 Zone Fire Panels.
Power requirements Aux 24V from host fire panel.
Quiescent current 2.8mA @ 30V DC.
Product dimensions (mm) 30 W x 90 H x D 20mm
Weight 24g.
