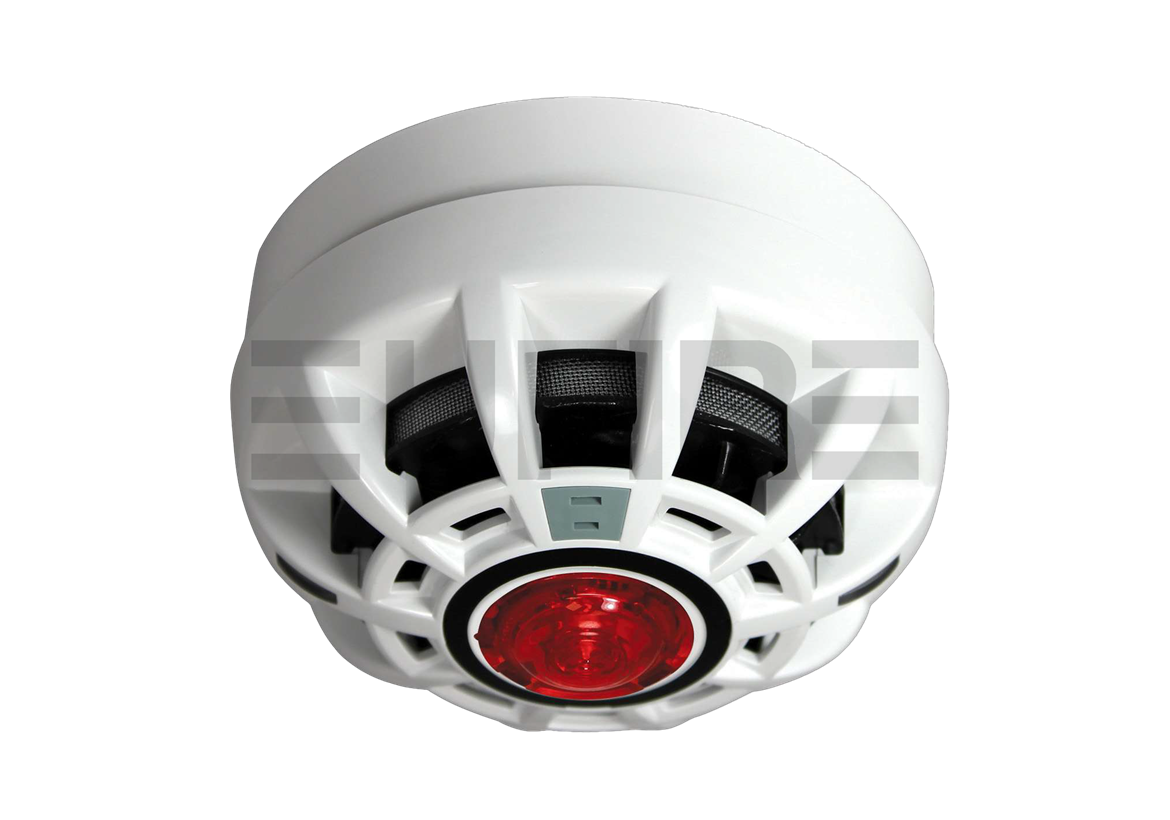

CO Fire + Smoke + Heat Multisensor c/w Tone Sounder & O-C-1.9-4 Red VAD

Image 1

CO Fire + Smoke + Heat Multisensor c/w Tone Sounder & O-C-1.9-4 Red VAD

  • CP411TVR
  • C-Tec
  • CP411TVR

Proven false alarm reduction and protection from fire like never before – introducing CAST-PRO, C-TEC’s new range of integrated fire detection & alarm devices.

EMAIL ENQUIRY 01706 658 880

Features

  • Multiple functionality in a single device - CO fire, smoke & heat multisensor fire detection plus a 92db(A) tone Alarm sounder and an OC-1.9-4 red VAD - detects real fires quickly, reduces false alarms effectively and indicates true alarm conditions decisively.
  • Certified to EN54-3, 5, 7, 17, 23, 29 & 31.
  • Compatible with C-TEC's ZFP and XFP CAST protocol addressable fire panels.
  • MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms provide incredible tolerance to false alarms whilst
  • enhancing the detection of real fire conditions.
  • Drift compensation functionality.
  • Onboard short circuit loop isolator.
  • Includes two 8mm x 2mm ultra-bright red LED indicating strips.
  • Multiple detection modes and different sensitivities for different times of the day.
  • 13.2mA max. alarm current (max vol, VAD on).
  • 630uA typical quiescent current @ 22-40V DC.
  • Compatible with C-TEC's CA408 CAST base c/w integrated locking mechanism & ID tag.
