Feature

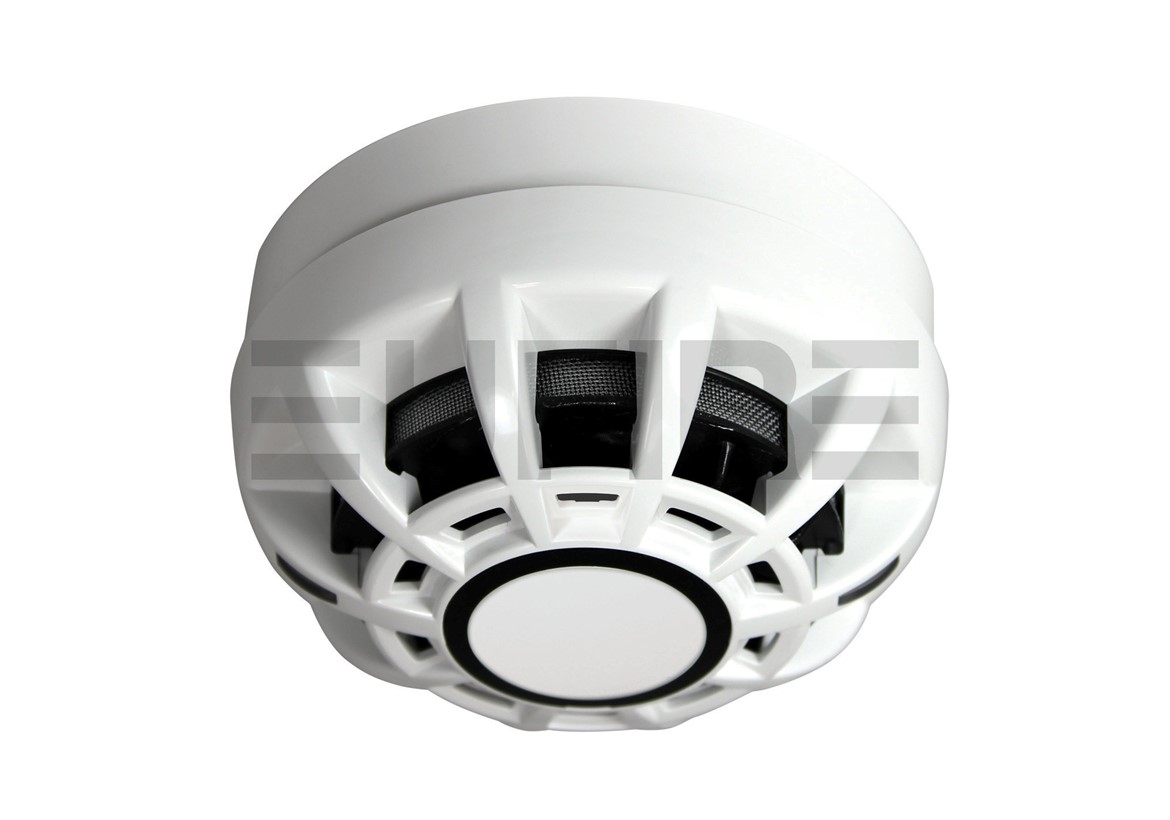

• A programmable CAST-PRO CO fire + smoke + heat multisensor fire detector.
• Certified to EN54-5, 7, 17, 29 & 31.
• Compatible with C-TEC's ZFP and XFP CAST protocol addressable fire panels.
• MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms provide incredible tolerance to false alarms whilst enhancing the detection of real fire conditions.
• Drift compensation functionality.
• Onboard short circuit loop isolator.
• Includes two 8mm x 2mm ultra-bright red LED indicating strips.
• Multiple detection modes and different sensitivities for different times of the day.
• <1mA alarm current (max vol, VAD on).
• 630uA typical quiescent current @ 40V DC.
• Compatible with C-TEC's CA408 CAST base c/w integrated locking mechanism & ID tag.

Downloads

• CAST Pro Brochure (PDF)
• Product Datasheet (PDF)

Videos
