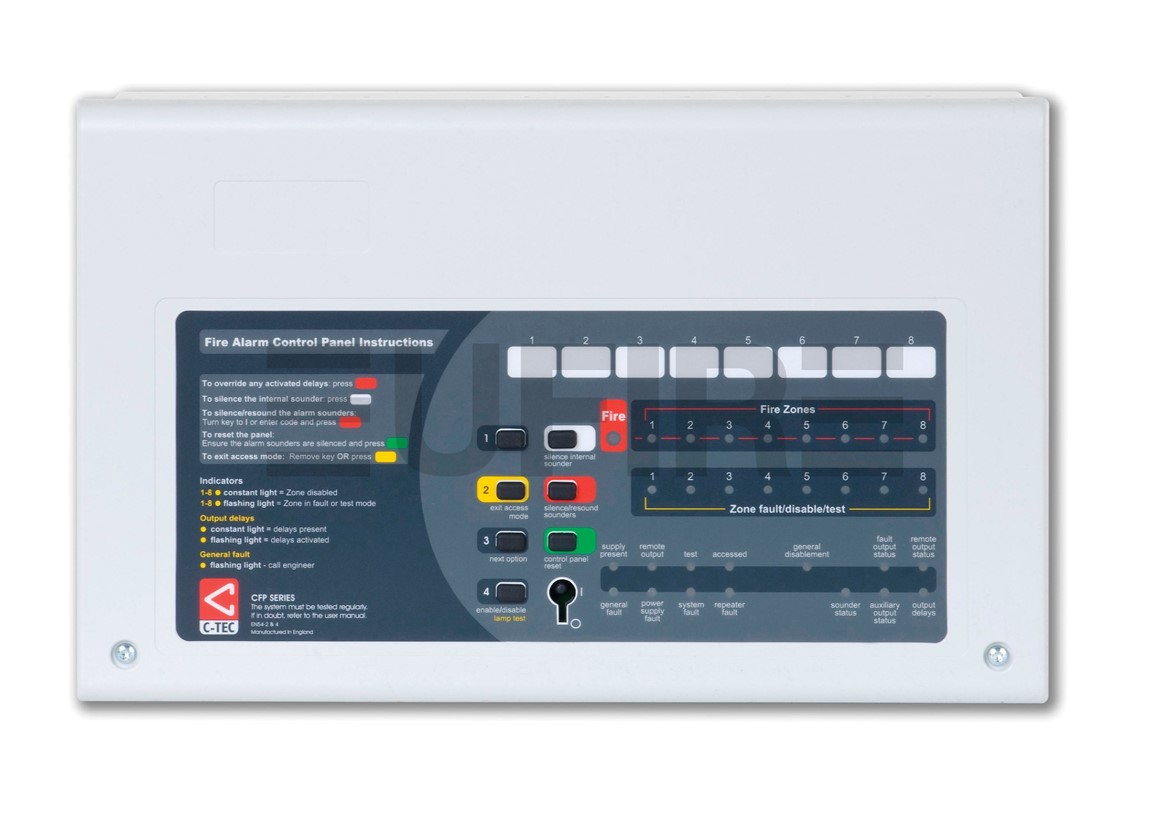

• Can be used to repeat the functions of a master CFP standard or AlarmSense 2-8 zone fire panel at remote parts of site (e.g. all potential fire service entrances).
• Up to 8 repeaters per CFP master.
• Includes its own Mains power supply that requires its own standby battery supply.
• Provides the user with access to all AL1 and AL2 functions.
• Master/Repeater communication achieved using CFP761 network driver cards (one CFP761 is supplied with the Repeater, an additional CF761 card is required at the master CFP).
• Communicates over screened two-wire fire resistant cable.
• Total repeater network cable length should not exceed 1KM.
• Attractive flush or surface mountable plastic lid and enclosure - no bezel required.
